| Model |

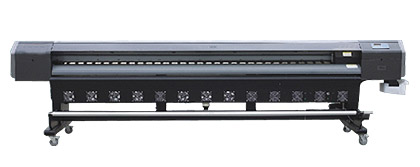

Brite Jet 330 SW |
|
| Printhead |
Skywalker 128/50 |
8 or 12 Head |
| Resolution |
1440 dpi |
|
| Speed/Output |
(8 Print Head) |
(12 Print Head) |
| |
2 Pass |
69 m2/h |
2 Pass |
98 m2/h |
| |
3 Pass |
50 m2/h |
2 Pass |
69 m2/h |
| |
4 Pass |
35 m2/h |
2 Pass |
52 m2/h |
| |
5 Pass |
25 m2/h |
2 Pass |
35 m2/h |
| |
6 Pass |
18 m2/h |
2 Pass |
26 m2/h |
| Max Media Width |
3300 mm |
| Max Printing Width |
3250 mm |
| Min. Media Size |
A-4 or 210 mm A-4 or 210 mm |
| Media Transmission |
50 kg Auto feeding, Less than 50 kg/roll |
| Media Type |
PVC, Flex, Vinyl, Window film, Polyester, etc. |
| Ink Type |
4 C,M,Y,K True Solvent or Eco Solven: C,M,Y,K |
| Display |
LCD Display with 8 key Panel, Self Diagnosis Available |
| Main Features |
LED Pre-Heating, Post Heating, Printhead Heating, Infrared |
| |
Drier(Optional), positive / negative pressure |
| |
LED Lamp |
| Operation System |
Window 2000/NT/ Windows XP/Vista |
| Print Inteface |
US B 2. 0 |
| Software |
Brite RIP, Photoprint RIP |
| Power |
AC 110 or 220V, 50Hz / 60Hz |
| Working Environment |
Temprature : 20°C - 28°C, Humidity : 40% - 70% |
| Printer Size/Weight |
(Net): L4, 826 mm × W 906 mm × H 1, 115mm / 340kg |
| Dimension/Weight |
(Gross): L4, 840 mm × W 960 mm × H 1, 294 mm / 378 kg |
|
