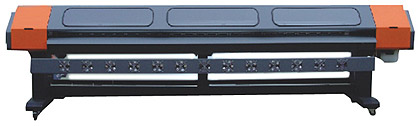

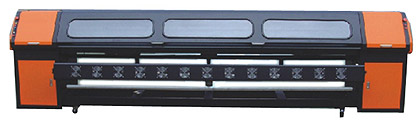

| Britejet 3304/3308 PB (Proton 382/35) |
 |
 |
| Model |
Britejet-3304 PB/PL |
Britejet-3308 PB/PL |
| Printhead |
Xaar Proton 382/35 PL |
Xaar Proton 382/35 PL |
| Number of Printhead |
4 |
8 |
| Maximum Media Width |
3300 mm |
| Maximum Print Width |
3200 mm |
| 360x360, 4 Pass |
25 sqm/hr |
50 sqm/hr |
| Print Speed 240x540, 3 Pass |
45 sqm/hr |
90 sqm/hr |
| 240x720, 4 Pass |
32 sqm/hr |
64 sqm/hr |
| Color |
CMYK |
| Media |
Paper, Advertising Banner, PVC, Mesh, Vinyl, Window Film & Canvas |
| Resolution |
Up to 1440 dpi |
| Media Feeding |
Auto Feeding, Auto Take up/Roll Less than 80kg |
| Auto Cleaning System |
Positive Pressure Cleaning, Solvent Cleaning & Anti Clogging |
| |
Flash Function (Vaccum Cleaner Optional) |
| Media Heating |
Pre Heater, Post Heater, Infrared Heater(Optional)/Cooling Fan System |
| Image Format |
Bitmap, TIFF, Quark Xpress, JPEG, AL, EPS, PDF |
| Color Management |
Superior ICC Profile |
| Work Flow |
RIP and print at the same time; print after RIP |
| Print Inteface |
US B 2. 0 |
| Ink Type |
Eco-Solvent/Solvent Based Ink |
| Software |
Photo Print 6.01 V2 |
| Print Head Height |
4mm (Maximum) |
| Work Station |
Microsoft 2000 or Windows XP |
| Voltage |
200V- (+10%) > 15A, 50Hz / 60Hz |
| Power Consumption |
2,200W (220AC) |
| Working Environment |
Temprature : 20°C - 28°C, Humidity : 40% - 60% |
| Machine Dimension |
Length 4.4 M; Width : 0.68 M |
| |
Height 1.15 M; Weight : 600kg |
|
|
