Britomatics America Inc.




Printers

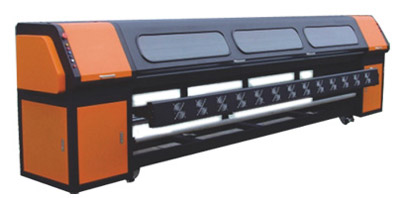

Britejet 3304/3308 KB (KM 512/42)

Model Britejet-3304 KB/KL Britejet-3308 KB/KL
Printhead KONICA 512/42 PL KONICA 512/42 PL
Number of Printhead 4 8
Maximum Media Width 3300 mm
Maximum Print Width 3200 mm
  360x360, 2 Pass 34 sqm/hr 68 sqm/hr
Print Speed 180x720, 2 Pass 40 sqm/hr 80 sqm/hr
   180x1080, 3 Pass 30 sqm/hr 60 sqm/hr
Color CMYK
Media Paper, Advertising Banner, PVC, Mesh, Vinyl, Window Film & Canvas
Resolution Up to 1440 dpi
Media Feeding Auto Feeding, Auto Take up/Roll Less than 80kg
Auto Cleaning System Positive Pressure Cleaning, Solvent Cleaning & Anti Clogging
  Flash Function (Vaccum Cleaner Optional)
Media Heating Pre Heater, Post Heater, Infrared Heater(Optional)/Cooling Fan System
Image Format Bitmap, TIFF, Quark Xpress, JPEG, AL, EPS, PDF
Color Management Superior ICC Profile
Work Flow RIP and print at the same time; print after RIP
Print Inteface US B 2. 0
Ink Type Eco-Solvent/Solvent Based Ink
Software Photo Print 6.01 V2
Print Head Height 4mm (Maximum)
Work Station Microsoft 2000 or Windows XP
Voltage 200V- (+10%) > 15A, 50Hz / 60Hz
Power Consumption 2,200W (220AC)
Working Environment Temprature : 20°C - 28°C, Humidity : 40% - 60%
Machine Dimension Length 4.4 M; Width : 0.68 M
  Height 1.15 M; Weight : 600kg




Xaar Spectra konica seiko
